[Translate to Englisch:]             (Glas-) Flaschenbrecher



High performance

Bottle crusher Euro pat.

Bottle crushers
Glass mills





• High crushing performance
• Great reduction of volume
• With accident prevention (protection against splinters)
• Low rate of wear
• Compact design (minimum space required)

Therefore, HEIN bottle crushers are a valuable complement for the bottling industry.

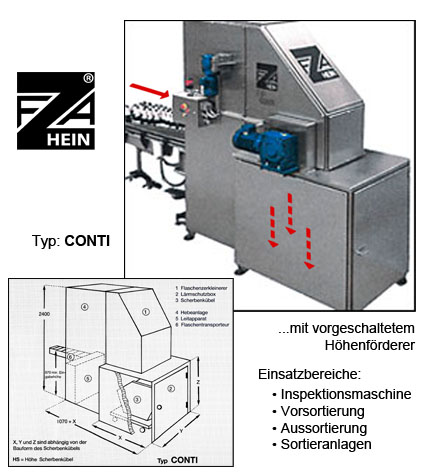

CONTI mit vorgeschaltetem Höhenförderer

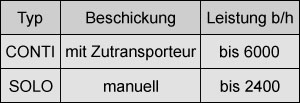

And now some examples of use for        Type: FZA-SPEZIAL



Charging: Bulk conveyor



The CONTI type (automatic charging)  is used where in case of a great volume of wrong bottles (inspection machine,
pre-sorting, elimination) staff and costs can be saved. In addition, the use of a CONTI system is also recommended if for reasons of ergonomics (charging height)
the use of a SOLO system is not recommended.

The bottle crushers can also be employed where used glass is transported to a container placed in a storey beneath, e.g. via hoppers or chutes. Then bucket loads of bottles are directly charged into the crusher via the hopper.
By this, a crushing performance of up to 6000 bottles/h is achieved.

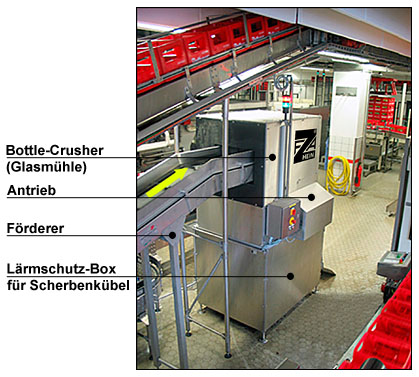

Fehlflaschenzutransport mittels Gurtbandförderer

            Charging wrong bottles by means of a belt conveyor

     - here in a sorting system of a brewery.

The decision about the type of conveyor to be chosen for the transport of wrong bottles is often dictated by the space available on site.





















Type: CONTI

Beschickung: Gurtbandförderer Rotationsförderer Hebeanlage Transporteur Pusher o.a.

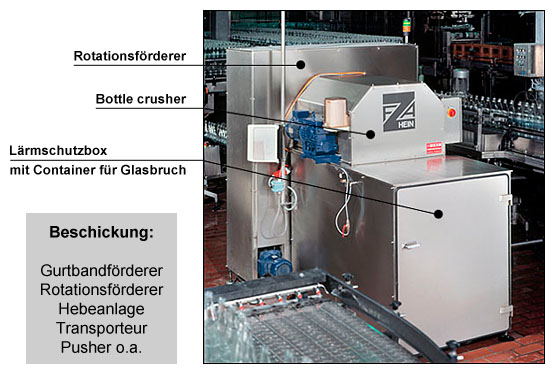

Space-saving rotating conveyor as charging device
 for the bottle crusher downstream of the elminating belt
 (area downstream of the inspecting machine)

Type: CONTI

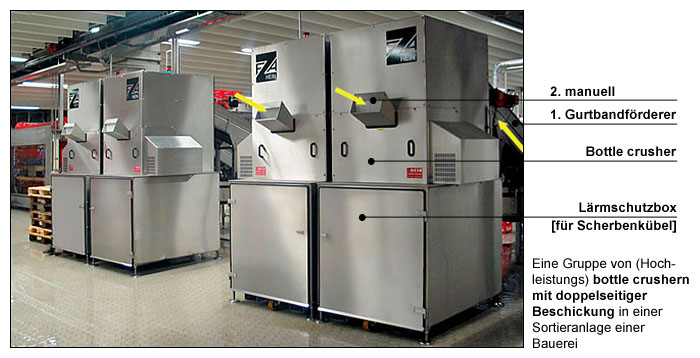

Eine Gruppe von (Hochleistungs-) bottle crushern mit doppelseitiger Beschickung in einer Sortieranlage einer Brauerei

 1. Feeding by means of belt conveyors
 2. Manual charging via the slots on the side of the walkway for the disposal of single wrong bottles

Type: CONTI

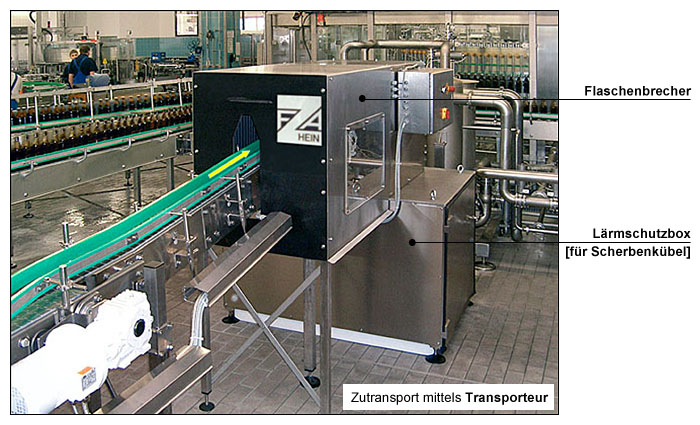

CONTI Zutransport mittels Transporteur

Type: CONTI

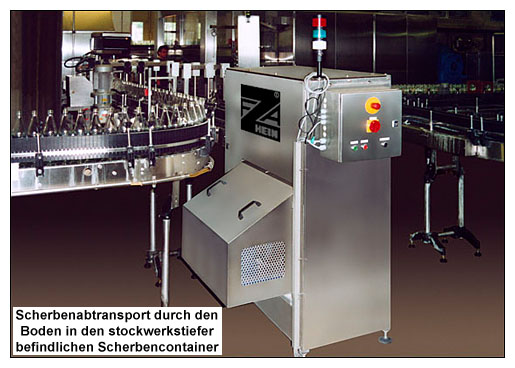

Scherbenabtransport durch den Boden in den stockwerkstiefer befindlichen Scherbencontainer

Feeding by a transporter
(evacuation from the inspection machine)

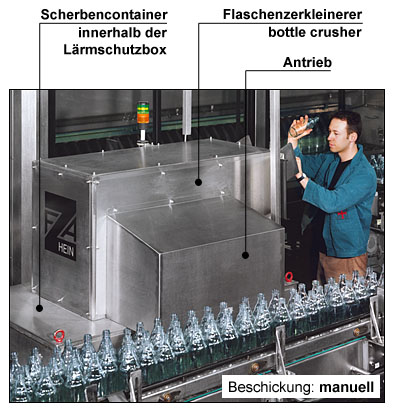

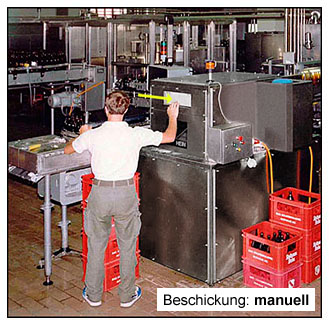

 Examples of use for


 Type: SOLO





SOLO

SOLO
